RECYCLING OF CONSTRUCTION MATERIALS FOR SUSTAINABILITY

Riddhish A. Shah *

* (PG - Construction Engineering & Management Student),

B.V.M. Engineering college, Gujarat Technological University,

Vallabh Vidhayanagar, India.

Email ID:* riddhish009@gmail.com

Jayeshbhai R.Pitroda *

# Professor Civil Engineering Department, B.V.M.

Engineering college, Gujarat Technological University, Vallabh Vidhayanagar, India

Email ID:*pitroda24977@yahoo.in

Abstract   -   In   India,   many   talks   are   being   heard   about sustainable construction  and researchers  are taking up studies here and there on use of unconventional construction materials that are aimed in using waste materials. However, focused attention   on   sustainability   of   materials   for   construction   is needed.  Though  the time  is not  yet  ripe  for forming  such an association in India, it is time for everyone concerned in the topic to start thinking about such a move

KEY WORDS: Recycling Of Concrete, Recycled  Concrete

Aggregate,How Concrete Is Recycled

INTRODUCTION

Concrete recycling is becoming an increasingly popular way to utilize aggregate left behind when structures or roadways are demolished. In the past, this rubble was disposed off in landfills, but with more attention being paid to environmental concerns, concrete recycling allows reuse of the rubble while also keeping construction costs down.

LITERATURE REVIEW

- Markets for recycled concrete aggregate

-  Aggregate Base Course, or the untreated aggregates used as foundation for roadway pavement, is the underlying layer which forms a structural foundation for paving. Ac ross- section of pavement would show dirt, or subgrade, as the lowest of three levels, with aggregate base course at the center and pavement (whether concrete or asphalt) at the surface. This is the major market in the india and can be mastered as the simplest and easiest use of recycled concrete. To date, it is also the most owner-accepted use of recycled concrete by Departments of Transportation. Recycled asphalt is also accepted as a usable aggregate base course or road base. Ready Mix Concrete consists of a blend of cement, sand and water. This market is in its infancy stage with few recyclers attempting this re-use strategy although confidence is gaining through the Built Green program. Above all, the recycled concrete aggregate producer must make a quality product and have secured a willing and progressive ready mix producer who already has something that works. The ready mix producer must then, in turn, make a quality end product. Uses to date are: residential slab and foundation; walk and curb;residential street; commercial slab and foundation; and concrete paving per aggregate approval.

Soil Stabilization is the incorporation of recycled aggregate, lime, or fly ash into marginal quality sub grade material used to enhance the load bearing capacity of that sub grade. The process changes the water susceptibility of sub grade thereby stabilizing the soil/sub grade. Many times concrete aggregate can be found and reused on the same project for this purpose. Pipe Bedding: Recycled concrete can serve as a stable bed or firm foundation in which to lay underground utilities. In this scenario, recycled concrete aggregate serves as a replacement of virgin aggregate. Originally, local municipalities developed specifications based on what is readily available in the area. This use of recycled concrete aggregate is only economical if there is savings in the yield and transportation costs. Landscape Materials: Recycled concrete can be used in various landscape settings. Sized concrete rubble can serve as landscape feature; an attractive support that offers different architectural texture and color while contributing to Built Green architecture. To date, recycled concrete aggregate has been used as boulder/stacked rock walls, underpass abutment structures, erosion structures, water features, retaining walls,

Value engineering benefits

  • Produce specification sized recycled aggregates at own location.
  •  Avoid haul-off costs and landfill disposal fees.
  • Eliminate the expense of aggregate material imports and exporis.
  • Increase  project  efficiency  and  improve  job  cost   - recycled  concrete aggregates yield more volume by weight (up to 15%).
  • Minimize impact to community infrastructure by reducing import and export trucking.

INDIAN STATUS

There is high demand of infrastructural facilities like house, hospitals,   roads   etc.   in   India   and   large   quantities   of construction materials for creating these facilities are needed. The planning Commission  allocated  approximately 50% of capital  outlay  for  infrastructure  development  in  successive 10th and 11th five  year  plans.  Rapid  infrastructural development   such   highways,   airports   etc.   and   growing demand  for  housing  has led  to  scarcity &  rise  in  cost  of construction materials. Most of waste materials produced by demolished structures disposed off by dumping them as land fill.  Dumping  of  wastes  on  land  is  causing  shortage  of dumping place in urban areas. Therefore, it is necessary to start recycling and re-use of demolition concrete waste to save environment, cost and energy.

Central   Pollution   Control   Board   has   estimated   current quantum of solid waste generation in India to the tune of 48 million tons per annum out of which, waste from construction industry only accounts for more than 25%. Management of such high quantum of waste puts enormous pressure on solid waste management system.

In view of significant role of recycled construction material and technology in  the development of urban infrastructure, Technology  Information,  Forecasting  and  Assessment Council (TIFAC ,Department  of science and technology,GOVT. OF INDIA ) has conducted a techno- market survey  on  "Utilization  of Waste  from  Construction Industry?  targeting housing /building and road segment. The total quantum of waste from construction industry is estimated to be 12 to 14.7 million tons per annum out of which 7-8 million  tons  are  concrete  and  brick  waste.  According  to findings of survey,  70%  of the respondent have given  the reason for not adopting recycling of waste from Construction Industry is  "Not  aware of the recycling  techniques"  while remaining 30% have indicated that they are not even aware of recycling possibilities. Further, the user agencies/ industries pointed out that presently, the BIS and other codal provisions do not provide the specifications for use of recycled product in the construction activities.

In view of above, there is urgent need to take following measures:-

  • sensitivity / distribution / capacity building towards utilization of construction & demolition waste.
  • Preparation and implementation of techno-legal regime including act, guidance, penalties etc. for disposal of building & construction waste.
  • Delineation of dumping areas for pre-selection, treatment, transport of RCANational  level  support  on  research  studies  on RCA.Preparation of techno-financial regime, financial support for introducing RCA in construction including assistance in transportation, establishing recycling plant etc.Preparation of data base on  utilization  of RCA.Formulation  of guidelines, specifications and codal provisions.
  • Preparation of list of experts available in this field who can provide knowhow and technology on totality basis.
  • Incentives  on  using  recycled  aggregate  concrete- subsidy or tax exemptions.

Realising  the  future  &  national  importance  of  recycled aggregate concrete in construction, Science and Engineering Research Council ( SERC), Ghaziabad had taken up a pilot R&D project on Recycling and Reuse of Demolition and Construction Wastes in Concrete for Low Rise and Low Cost Buildings in mid nineties with the aim of developing techniques/ methodologies for use recycled aggregate concrete in construction. The experimental investigations were carried out   in   Mat   Science   laboratory   and   Institutes   around Delhi/GBD   to   evaluate   the   mechanical   properties   and durability parameters  of  recycled  aggregate  concrete  made with  recycled   coarse  aggregate  collected   from   different sources. Also, the suitability in construction of buildings has been studied.

The properties of RAC has been established and demonstrated through several experimental and field projects successfully. It has been concluded that RCA can be readily used in construction of low rise buildings, concrete paving blocks & tiles, flooring, retaining walls, approach lanes, sewerage structures,  sub base  course  of pavement,  drainage layer  in highways, dry lean concrete(DLC) etc. in Indian scenario. Use of RCA will further ensure the sustainable development of society  with  savings  in  natural  resources,  materials and energy.

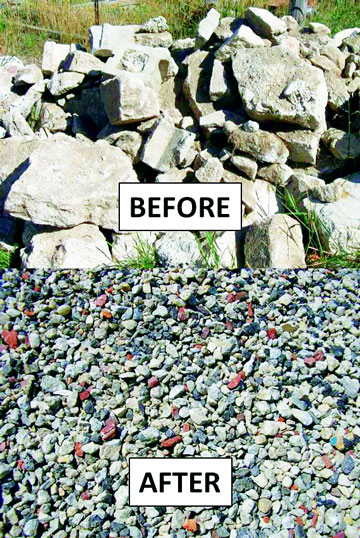

How Concrete Is Recycled

Products are high quality aggregate, processed in steps with time and effort involved in crushing, pre-sizing, sorting, screening and contaminant elimination. The denominator is to start with clean, quality rubble in order to meet design criteria easily and ultimately yield a quality product that will go into end use.

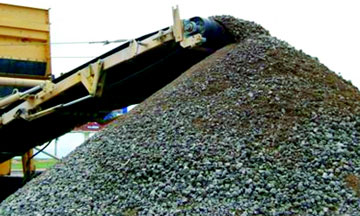

Crushing and screening systems start with primary jaws, cones and/or large impactors taking rubble from 30 inches to 4 feet. A secondary cone or impactor may or may not need to be run, and then primary and secondary screens   may or may not be used, depending upon the project, the equipment used  and the final  product  desired.  A scalping  screen will remove dirt and foreign particles. A fine harp deck screen will remove fine material from coarse aggregate.

Further  cleaning  is  necessary  to  ensure  the  recycled concrete product is free of dirt, clay, wood, plastic and organic materials. This is done by water floatation, hand picking, air separators, and electromagnetic separators.

Occasionally asphalt overlay or patch is found. A mixture of asphalt and concrete is not recommended but small patches are not detrimental.

The more care that is put into the quality, the better will be the   product   received.   With   sound   quality   control   and screening one can produce material without having to wash it as with virgin aggregate, which may be ladened with clay and silt.

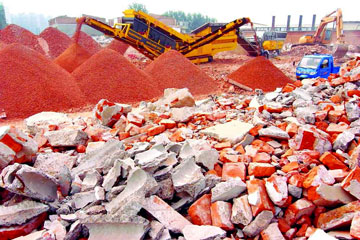

Recycle Plants

The choice of one or several types of these recycle plants willbe determined by the project. For example, is the project a redevelopment?  Is  there  demolition  onsite?  Is  the  site  a recycle center? Rest assured there is a recycle plant to fit the project.

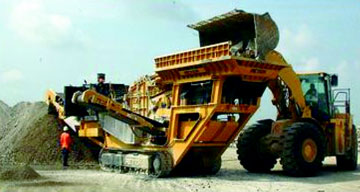

Mobile Recycling Plant: This type of recycling plant can be moved  to  various  locations  economically.  Track-mounted plants allow superior on-site mobility.

Portable Recycling Plant: Choosing the right crusher  for  a particular  concrete recycling project depends on several factors to be successful/profitable. What goes into the crusher, what is used to feed it (loader or hoe) and what specification final product is needed determines the size, type, and capacity of the unit / units.  Preparation:  How  much  are  you  willing  spend  to prepare the material  before it is ready to crush? This will determine the maximum feed size the crusher will be fed and how much steel/rebar/wood/dirt needs' to be removed prior to crushing. This is typically done with hammers, hydraulic crunchers, and pre-screening. Magnets may be used to remove the loose steel.

Type  Of  Crushers:  Jaw  Crushers  -  Jaws  compress  the concrete between a stationary and moveable plate. Concrete is reduced in size as it travels down the length of the wedge between the two plates. Jaws are used as primary crushers r.nd typically produce a 4" to 8" minus product usually used as fill. Impact Crushers - Impactors have a spinning rotor with bars or hammers that fling the concrete into a solid plate, several plates, or rods. Impactors can be used as primary, secondary, and even tertiary crushers and produce a product typically 2" minus used as base material in  some parts of the country. Cone Crushers - Cones are also compression type machines with the concrete being compressed between two cone-shaped plates. Concrete feed to a cone is typically 6" minus as they are used mostly as secondary crushers behind a Jaw or Impact Primary. Cones typically produce products of 1-1/2" minus.

All of the above crusher types are available in Portable, Mobile, and Stationary configurations. Portable crushers are mounted  on  rubber-tired  chassis  and  towed  to  the  site  by truck. On  site, they are moved by loaders or  tugs. Mobile crushers are carried to the site by truck and trailer and have their own onboard drive system typically track driven. These units move easily on sites where several moves are required. Stationary crushers are just that they are permanently fixed to the ground. Typically used in a recycling yard where all material is trucked to the site.

Case Study:

"Recycled Concrete Aggregate Ready Mix Used in Structural Applications"

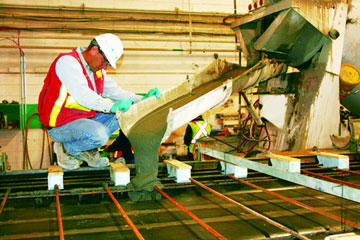

In 2008, ReCrete Materials, Inc of Arvada, Colorado provided approximately 7,900 cubic yards of ready mixed concrete containing recycled concrete aggregate for use in foundations and tilt-up panels at the Enterprise Park at Stapleton project in Denver. In a unique effort, Etkin Johnson Group, general contractor Murray and Stafford, Inc., concrete contractor CAL Construction, Inc. and Forest City Development utilized the recycled mix designs for their office and industrial development, which is located within the borders of what was once Denver's Stapleton International Airport.

ReCrete Materials, Inc utilized 2,305 tons or just over 4.6 million pounds of recycled aggregates from the runways of the former airport in the construction of three high-end office/warehouse buildings. The 2,200 cubic yards used in the foundations  contained  approximate!)'  620  tons  (1,240,000 lbs.)  of recycled  aggregate  and  115  tons (230,000 lbs.) of flyash. Total recycled weight in the foundations equaled 735 tons or 1,470,000 lbs. The 5,700 cubic yards utilized in the tilt-up panels contained approximately 1,570 tons (3,140,000 lbs.) of recycled aggregate (no flyash was used in this mix design).  Flyash  was  not  allowed  in  the  tilt-up  panel  mix design, therefore only the recycled aggregate qualifies as a recycled product.

According to the Tilt-Up Concrete Association, the 1,570 tons  of  recycled  concrete  utilized  in  the  tilt-up  panel  mix design on this project is the largest use of recycled concrete in a tilt-up application on record. Tilt-Up Contractor, CAL Construction, Inc. of Denver noticed little, if any, difference in the recycled material, including the ability to pump and finish, and recorded higher end strengths than found in traditional mix designs.

The developer, Etkin Johnson Group, plans to seek LEED certification  for this project, which includes three buildings with 441,000 square feet of office and industrial space within the Stapleton Redevelopment. Energy efficient, green building design will be incorporated throughout. The decision to use recycled concrete for this project was based on several factors:

  • The  material  was  readily  available  at  nominal  additional costs.
  • The end product met all quality standards.
  • The use of recycled material allowed the concrete admixtures to be tailored to the needs of each part of the project.
  • The use of recycled aggregates had positive environmental impacts.
  • The proximity of the recycled material, in this case, offered additional points toward LEED certification as did the fact that recycled  concrete aggregate qualifies for  both  pre and post-consumer LEED points (while flyash does not).

According to ReCrete Materials, Inc., advantages to using a recycled mix designs are:

  • Reduces plastic shrinkage cracking and reduces initial set times.
  • Higher 7 day and 28 day strengths.
  • Improved finishability
  • Diversion  of useable concrete aggregate from the waste • stream.
  • Reduces number of truck trips from distant quarries.

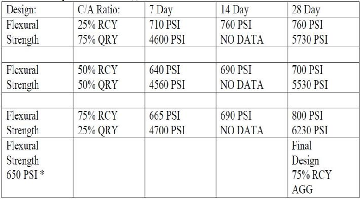

  • TABLE 1 Examples of Test Results[3]

* Department of Transportation's design specification

Table1

Other Properties of Recycled Aggregates

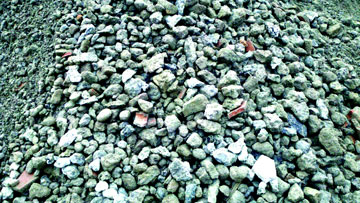

  • Recycled aggregate yields up to 15% more volume by weight.
  • Recycled   aggregates   are   typically   more   angular   and multifaceted than virgin aggregates.

ReCrete  Materials,   Inc.  focuses  on  the  utilization   of recycled concrete in new ready mix applications while also providing virgin mix designs. ReCrete projects to date have been private, public, industrial and commercial with a client list  that  includes  City  and  County  of  Denver,  City  of Thornton, City of Arvada, the Town of Golden and numerous residential and commercial/industrial construction firms in the Denver metro area.

Conclusion

The Recycle Concrete Aggregate can be beneficiated by crushing and screening  to acceptable  limits.  The  beneficiated  recycle  Concrete Aggregate  has great  potential  for  used in concrete and asphalt products with better performance over comparable virgin aggregates.   Recycled  aggregates  are  lighter  weight  per  unit  of volume, which means less weight per cubic yard, resulting in reduced material costs, haul costs, and overall project costs.

Acknowledgement:  Authors  are  thankful  to the  Director,  B  V  M Engg. College , Vallabh Vidhyanagar   for his permission to publish the present work.

References

  • R.Kuberan, Editorial Consultan
  • wmv.concreterecycling.org
  • www.drywallrecycling.org
  • www.shinglerecycling.org
  • National Recycling Research Center, University of New Hampshire: http://www.rmrc.unh.edit/
  • C. S. Poon, , S. C. Kou and L. Lam "Use of recycled aggregates in molded concrete bricks and blocks"
  • Department  of  Civil  and  Structural  Engineering,  The  Hong  Kong Polytechnic University, Hong Kong, PR China
  • A. Masood, T. Ahmad, M. Arif, F. Mahdi" Waste  management strategies for concrete"
  • Singh, S.K., Sharma, P.C., and Nagraj, N. (1997), "State-of-Art Report on Recycled Aggregate Concrete," SERC Report, Ghaziabad.
  • Construction Material Recyled association (CMRA) .Data Produced by Mark Wachal,table Formulated by shawana Bohan.
