Anatomy of Cracks in RC Members

Dr. C S Viswanatha, Chairman, Civil-Aid (A Bureau Veritas group Company)

Cracks in RC members are an indication of distress in the members due to several possible reasons. The anatomy of these, throws light on the distress intensity, the seriousness of the problem, the possible corrective measures and several other related issues.


Classification of Cracks


Dr. C S Viswanatha

Cracks in Reinforced Concrete members can be broadly classified as either active or dormant. hile Active cracks show some movement in direction, width or depth over a measured period of time, dormant cracks remain unchanged.  Some of the dormant cracks pose no harm, but if left unrepaired, provide channels for moisture penetration leading to future damage.


From visual inspection point, Cracks can be more specifically understood based on three factors namely, the configuration, the width and the depth. Formation and appearance of Cracks may be longitudinal, transverse, vertical, diagonal or random.  They may range in size from less than 0.1 mm (fine) to between 1 and 2 mm (medium) to over 2 mm (wide).

Cracks on a broader scale of understanding can also be classified as:

  • Micro Cracks.
  • Macro Cracks.
  • Structural Cracks.
  • Non- Structural Cracks.
  • Stable Cracks.
  • Unstable / Dynamic Cracks.
  • Harmful cracks.
  • Harmless Cracks.

Visual Inspection

The most important and primary inspection of cracks is done visually. The configuration, extent, location, whether scattered or localized, orientation etc. are some of the features, which could be identified with careful visual examination of the concrete.

Origin of Cracks - Cracks might develop due to any of the following individual reasons or in combination.

  • Structural deficiency resulting from design deficiency or construction deficiency.
  • Deterioration of concrete or corrosion of rebars due to poor construction or inappropriate selection of constituent materials or poor maintenance.
  • Temperature and shrinkage effects.
  • Overloading of members.
  • Settlement of supports.
  • Natural hazards; etc.

Interpretation of Cracks

Most buildings crack at some time during their service life. The appearance of cracks is a symptom of distress within the fabric of the building. Often the cracking is of little consequence and once it is established that it is static, simple repair by filling or re-pointing is all that is required. However a crack may be the first sign of a serious defect, which may affect the serviceability or the stability of the building.

The appearance of cracks can also affect the value of the building, its insurability, the saleability and can be the subject of litigation. Therefore correctly diagnosing the cause of the cracks is essential. However it is far from a simple task and is often a subjective exercise. The implications of an incorrect assessment can lead to expensive and unnecessary remedial work.

So how does the professional adviser decide if the cracks are significant? Providing information regarding reasons & classifications of cracks including their prevention is not enough. Whatever one may do, cracks might still appear. How to interpret these cracks, what types of investigations should be carried out and what corrective action should be done? Answers to these are important for maintaining the service life of the structure and deciding when the structure component has outlived its life.

This article attempts to interpret the cracks based on their appearance, pattern, characteristics and effects.


1.0 Flexure cracks in beam-Figure 1

Characteristics Repercussions
  • Occurs when there is flexural strength deficiency
  • Occurs in minimum positive moment region.
  • Maximum width at bottom face.
  • Converges towards top.
  • Occurs either singly or in group.
  • Affects structural soundness.
  • Needs to be attended to (But not an emergency)

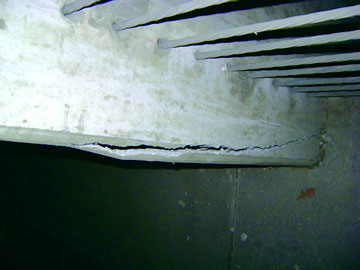

2.0 Flexure cracks in beam-Figure 2



•Occurs when there is flexural strength deficiency.

•Occurs in maximum negative moment region.

•Maximum width at top face.

•Converges towards bottom.

•Occurs, in general, singly.

•Affects structural soundness.

•Needs to be attended to (but not an emergency).


3.0 Top Flexure cracks (Cantilever Fixed End) - Figure 3



•Occurs when there is flexural strength deficiency.

•Occurs in maximum moment region.

•Maximum width at top face.

•Converges towards bottom.

•Occurs, singly.

•Affects structural soundness.

•Needs to be attended to preferably early.

4.0 Diagonal tension cracks in beam (or shear cracks)-Figure 4




•Occurs when there is shear strength deficiency.

•Occurs in maximum shear region.

•Maximum width at mid-depth.

•Converges towards top / bottom.

•Occurs either singly or in group.

•Affects structural soundness.

•Needs to be attended to (But not an emergency).

5.0 Shear - flexure cracks in beam-Figure 5



•Occurs when there is deficiency both in shear strength and flexural strength.

•Occurs at about ¼ to 1/3 span at either end.

•Maximum width at bottom

•Converges towards top.

•Occurs at either end – generally singly.

•Affects structural soundness.

•Needs to be attended to (But not an emergency).

6.0 Torsional crack in beam – Figure 6



•Occurs when there is torsional structural deficiency.

•Uniform width throughout.

•Occurs in the form of a spiral.

•Occurs singly.

•Affects structural soundness.

•Needs to be attended to immediately, a clear case of emergency.

7.0 Cracks due to abrupt curtailment of bars in beam – Figure 7



•Occurs at sections where there is abrupt curtailment of bars.

•Occurs singly or in group.

•Occurs generally near the curtailment region.

•Generally does not need any major attention, except sealing the cracks with appropriate sealants.

8.0 Bond Slip cracks in beam - Figure 8



•Occurs due to deficiency in bond in curtailed bars.

•Occurs in group.

•Occurs generally near the curtailment region.

•Does not need any major attention, except sealing the cracks with appropriate sealants.

9. Disturbance cracks in beam - Figure 9



• Occurs, when supports are abruptly removed, when concrete has not gained requisite strength.

• Occurs at intervals throughout the length of beam.

• Generally the cracks are hairline cracks.

• Does not need any major attention.

10. Construction joint crack in beam – Figure 10



•Occurs along construction joint, if joint is not executed properly.

•Generally hairline in nature.

  • Affects structural soundness and may trigger rebar corrosion at that location.
    • Generally does not need any major attention except sealing the crack with appropriate sealants or     grouting the crack with appropriate grouts.


1.0 Horizontal crack in column - Figure 11



•Occurs in columns, when the column is not designed adequately for resisting bending moment; when the member is subjected to direct load and uniaxial moment.

•Occurs on the face wherein tensile stress is maximum.

•Width of crack depends on degree of deficiency.

•Affects structural soundness.

•From structural safety considerations, needs to be attended to, preferably early.

2.0 Diagonal crack in column - Figure 12



•Occurs in columns, when the column is not designed adequately for resisting the imposed loads.

•Generally encompasses all the four faces.


•Affects structural soundness.

•From structural safety considerations, needs to be attended to, preferably early.

3.0 Corrosion bond crack in column - Figure 13



•Occurs when rebar gets de-bonded from surrounding concrete due to onset of corrosion.

•Occurs directly above the rebars.

•Uniform width, width depends on the extent of corrosion of rebars.

•Corrosion of rebars gets accelerated.

•Needs to be attended to, (But not an emergency)

4.0 Splitting cracks in column - Figure 14

5.0 Tension crack in Tie beam - Figure 15

•Occurs in tension members when capacity is exceeded or when concrete quality is poor or when design deficiency exists.


•Uniform width throughout and parallel to each other.


•Occurs over the whole length.


•Affects structurally soundness.


•Needs to be attended to (But not an emergency).


Generally cracks in slabs are not of any serious nature. Not much of concern from safety point of view, except when they are associated with excessive deflections. They need to be attended to only from psychological performance and durability considerations, but not an emergency.

Figure 16 Flexure Crack in one-way slab-bottom face

Figure 17 Flexure Crack in Two-way slab- bottom face

Top Flexure Cracks in Slab - Figure 18

Top Flexure Cracks In Slab may occur due to inadequate negative reinforcement OR Reinforcements not being continuous across the support.

Plastic Shrinkage Cracks on Slab Top- Figure 19

Plastic Shrinkage Cracks may appear randomly over the surface due to rapid early drying, low bleeding and quick surface evaporation. Time of their appearance may be from about 30 minutes to about six hours of pouring of concrete.

Thermal Cracks in Slabs- Figure 20

Variations in the temperature of concrete cause it to expand and contract. Significant differences in temperature between the outer and inner regions can cause concrete to crack.

Cracks Due To Foundation Settlement-Figure 21


Due to differential settlement of any loaded column, inclined cracks develop at support region in the immediate horizontal members. Soil stabilization by any appropriate means is the solution.


Corrective Measures

Corrective measures taken up are essentially measures to bring back the member to original level of normalcy. This can be through:

  • Providing additional reinforcements to counteract the deficiency.
  • Further increasing the concrete cross-section along with additional reinforcements to counteract the deficiency. (Popularly known as encasement)
  • Bonding steel plates or carbon laminates to original concrete surface appropriately.
  • Sealing the cracks by pressure grouting with low viscosity monomers or epoxies or cement grouts.
  • Prestressing members externally by appropriate means.
  • Wrapping with glass / carbon fibre wraps appropriately.
  • Substitution techniques.
  • Polymerization techniques, etc.,
  • Any one of the above or in combination is resorted to generally.

Concluding Remarks

The individual cracks in Reinforced Concrete members are unique by themselves. They are versatile diagnostic devices, clearly indicating the specific problems in the concerned Reinforced Concrete members. In addition, they also indicate the degree of seriousness of the problem. The cracks throw light on the discipline in the associated structural designs and construction quality. The corrective measures to be implemented are clearly indicated by the cracks themselves.
